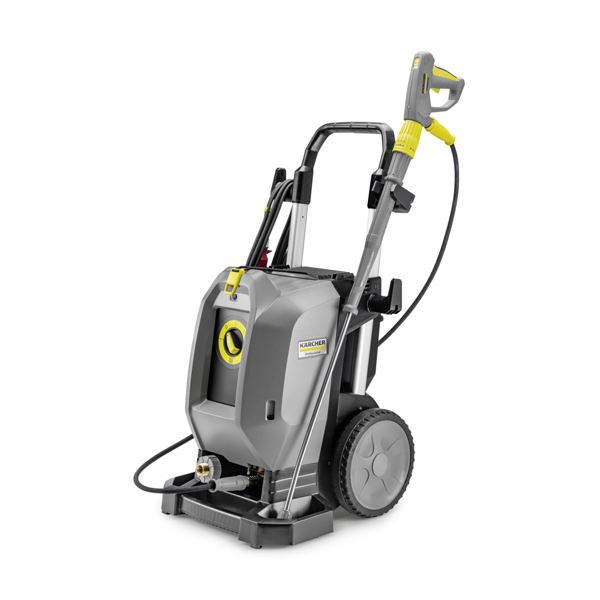

Karcher HD 9/20-4 S Pressure Washer
(£1,499.00 ex VAT)
- 7kW 4-pole three-phase motor with air & water cooling
- Pressure: (Max / Operating): 250 Bar / 50 - 200 Bar
- Flow Rate: up to 900 Litres Per Hour
- 10m High Pressure Hose
- Three piston axial pump with stainless steel pistons
- Call for knowledgeable assistance
- We only sell genuine products
- SKU: 20056
- CATEGORY: Commercial Pressure Washers // Commercial Pressure Washer Machines
The HD 9/20-4 S cold water high-pressure cleaner is ideal for daily use in tough conditions. The finest materials guarantee top quality – and you can count on both from Kärcher. Inside the machine, a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head delivers powerful performance, complemented by a 4-pole low-speed motor with air-water cooling system.
The integrated aluminium frame carriers reduce the weight and provide a light yet hard-wearing chassis, suitable for crane loading. For a compact design and maximum portability, the motor and pump unit is mounted vertically in an upright arrangement. In addition to this, it features accessory storage in the form of a stowage compartment and adjustable hooks. The HD 9/20-4 S takes ergonomic working to the next level.
Thanks to the EASY!Force Advanced trigger gun, it can be operated effortlessly without any holding force, ably assisted by a rotating 1050-millimetre stainless steel lance. The Servo Control controller positioned between the trigger gun and lance can be used to adjust pressure and water volume.
Features
- Compact upright design concept based on vertical arrangement of motor and pump unit - Small footprint and space-saving proportions. Easy to manoeuvre and transport. Maximum stability ensures a stable footing for the machine.
- 4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head - Long service life and low maintenance costs. High performance and high efficiency. With suction feature and up to 60 °C water temperature.

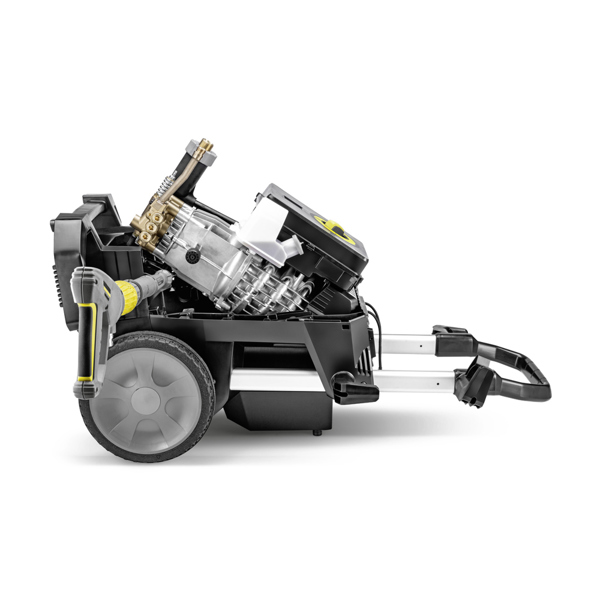

- Intelligently designed service concept facilitates quick operations on site - Swivelling pump head. Convenient oil fill level display and oil drain hole integrated in the chassis. Modular construction, comprising pump, motor and control cabinet.
- Wide-ranging accessories with EASY!Lock - Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun. EASY!Force Advanced for fatigue-free work without any holding force. Rotating 1050 mm stainless steel lance.

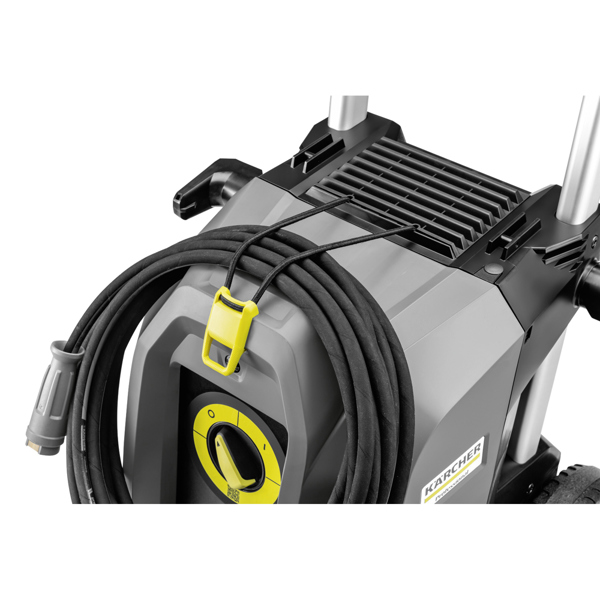

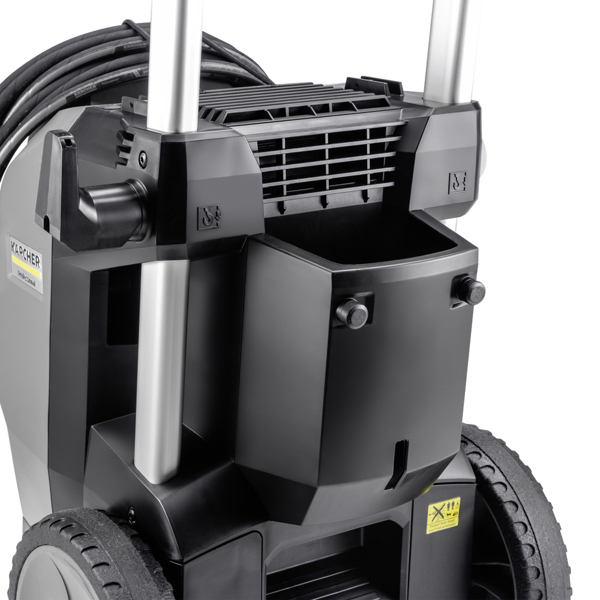

- Multiple storage spaces for accessories integrated into the machine - stowage compartment, adjustable hooks, e.g. for storing second lance or electric cable. Storage for high pressure hose.
Pack Size | Each | Motor size | 7kW |
---|---|---|---|
Power | 376v - 424v / 50Hz | Capacity | 5m |
Weight (kg) | 69 | Pump | Three piston axial pump with stainless steel pistons |
Filtration | Integrated fine mesh water filter | Colour | Anthracite Grey |
Water Flow Rate | 500 - 900 lph | Max Water Temp | 60ºC |
Pressure Bar | 50 - 200 operating / 250 max | Hose Length | 10m |
Tools Inc | 1050mm Rotatable Spray Lance & Power Nozzle | Model | HD 9/20-4 S |
Model Number | 1.286-951.0 | EAN | 4054278904269 |
Width (mm) | 518 | Height (mm) | 1063 |
Depth (mm) | 607 |
Buy With 100% confidence from a Karcher Centre. Your Kärcher Commercial pressure washer comes with a full 12 month warranty that covers all parts of the machine (excluding any parts deemed as consumables) both for parts and labour. Call us on 01293 853 044 for on-site warranties, extended warranties, expert advice or training.
- Karcher HD 9/20-4 S Pressure Washer
- EASY!Force Advanced Trigger Gun
- 10m High Pressure Hose
- 1050mm Rotatable Spray Lance
- Power Nozzle
